CCTV Cable

• Application
• Other, Networking, LAN, Data Centers, Communication

• Armored Material
• Not Armored

• Cable Type
• CAT6 UTP

• Color
• Blue

• Conductor Material
• Copper

• Conductor Shape
• Other, Solid

• Conductor Type
• Solid

• Connector Color
• Not Applicable (Supplied as cable, connectors not included)

• Core Material
• Copper

• Core Number
• 4 pairs (8 cores)

• Diameter
• Approx. 6.1 mm

• Dielectiric Strength
• 1.5 kV

• Dimension (L*W*H)
• 305m Roll (Standard box packaging)

• Features
• High performance, high speed data transmission, compliant with standards, easy installation, reliable signal integrity

• Impedance
• 100 Ohm 15%

• Install Type
• Indoor

• Insulation
• HDPE

• Insulation Material
• Other, HDPE (High Density Polyethylene)

• Jacket Color
• Blue

• Jacket Material
• Other, PVC (Polyvinyl Chloride)

• Length
• 305 meters

• Material
• Copper with PVC and HDPE insulation

• Number of Conductor
• 8 (4 twisted pairs)

• Operating Temperature
• 0C to +60C

• Product Type
• CAT6 UTP LAN Cable

• Rated Temperature
• 0C to +60C

• Shield Material
• Unshielded (UTP)

• Size
• 23 AWG

• Storage Temperature
• -20C to +75C

• Tensile Strength
• Min. 9.5 MPa (Jacket)

• Usage & Applications
• Structured cabling, Computer Networking, Server Rooms

• Voltage
• Other, Up to 72V

• Weight
• Approx. 11.5 kg (per box)

• Application
• Other, CCTV Camera Video and Power Transmission

• Cable Type
• Coaxial with Power (3+1)

• Color
• Black

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Solid

• Connector Color
• Silver

• Core Material
• Copper

• Core Number
• 2 Core

• Diameter
• 6 mm

• Dielectiric Strength
• 50 KV/cm

• Dimension (L*W*H)
• 90m x 6mm x 6mm

• Features
• High signal transmission, noise free, easy installation, high durability, flame retardant, UV resistant, weather proof

• Impedance
• 75 Ohm

• Install Type
• Indoor and Outdoor

• Insulation
• PVC Insulated

• Insulation Material
• PVC

• Jacket Color
• Black

• Jacket Material
• PVC

• Length
• 90 meters

• Locking Type
• Cable only, BNC Connector required

• Material
• Copper & PVC

• Number of Conductor
• 2

• Operating Temperature
• -10C to +70C

• Product Type
• CCTV Coaxial Cable

• Rated Temperature
• -10C to +70C

• Shield Material
• Aluminum Foil

• Size
• 6mm Diameter

• Storage Temperature
• -15C to +60C

• Tensile Strength
• High

• Usage & Applications
• Video and Power Transmission for Security Cameras

• Voltage
• Other, 300V

• Weight
• Approx. 2.5 Kg (for 90m)

• Application
• Other, Ethernet, LAN, Networking, Telephone, Data Centers

• Armored Material
• None (Standard UTP); available in armored version upon request

• Cable Type
• UTP (Unshielded Twisted Pair)

• Color
• Grey

• Conductor Material
• Other, Copper (Solid or CCA as per type)

• Conductor Shape
• Round

• Conductor Type
• Other, Solid or Stranded

• Connector Color
• Transparent

• Core Material
• Copper

• Core Number
• 8 (4 twisted pairs)

• Diameter
• 5.2 mm (nominal)

• Dielectiric Strength
• 1.5 kV/min

• Dimension (L*W*H)
• 305m package roll (standard box dimensions may vary)

• Features
• High-speed data transmission, twisted pair design, enhanced crosstalk performance, backward compatible

• Impedance
• 100 Ohms 15%

• Install Type
• Indoor

• Insulation
• Polyethylene

• Insulation Material
• PVC

• Jacket Color
• Other, Grey

• Jacket Material
• PVC

• Length
• 305 meters (1000 feet) per reel

• Locking Type
• Standard RJ45 compatible

• Material
• PVC/Copper

• Number of Conductor
• 8 (4 pairs)

• Operating Temperature
• -20C to +60C

• Product Type
• Cat 5e Networking Cable

• Rated Temperature
• -20C to +60C

• Shield Material
• Unshielded (UTP) or Shielded (FTP/SFTP) options

• Size
• 24 AWG

• Storage Temperature
• -20C to +70C

• Tensile Strength
• 13MPa

• Usage & Applications
• Data transmission, networking, structured cabling

• Voltage
• Other, 300V (max)

• Weight
• Approx. 8kg per box (305m)

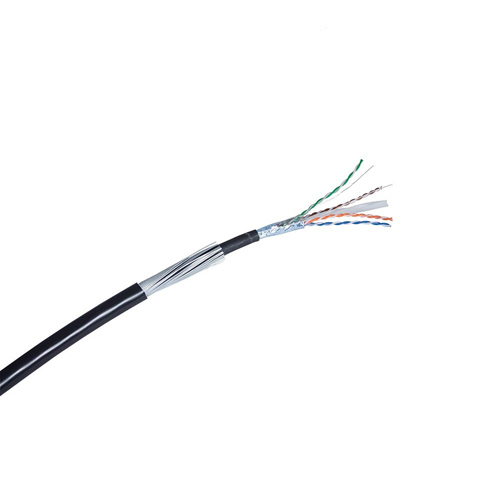

• Application
• Other, Data transmission, LAN, WAN, CCTV, industrial networking

• Armored Material
• Galvanized Steel Tape

• Cable Type
• S/FTP (Shielded Foiled Twisted Pair)

• Color
• Black (armor visible on strip)

• Conductor Material
• Other, Bare Copper

• Conductor Shape
• Other, Solid

• Conductor Type
• Other, Single Core (per wire)

• Connector Color
• Silver/Gold (depends on connector type used)

• Core Material
• Pure Copper

• Core Number
• 4 pairs

• Diameter
• 7.8 mm 0.2 mm

• Dielectiric Strength
• 2.5 kV/1 min

• Dimension (L*W*H)
• Varies based on packing, typical drum 50cm x 50cm x 30cm

• Features
• High durability, UV resistance, moisture-proof, rodent protected, suitable for outdoor and underground installation

• Impedance
• 100 Ohms 15%

• Install Type
• Direct burial, outdoor ducts, exposed runs

• Insulation
• HDPE

• Insulation Material
• Other, HDPE (High Density Polyethylene)

• Jacket Color
• Black

• Jacket Material
• Other, PVC (Polyvinyl Chloride)

• Length
• 305 meters (customized lengths available)

• Locking Type
• Standard RJ45 compatible

• Material
• Copper, Steel, PVC, HDPE

• Number of Conductor
• 8 (4 twisted pairs)

• Operating Temperature
• -20C to +75C

• Product Type
• Category 6 Armoured Network Cable

• Rated Temperature
• -20C to +75C

• Shield Material
• Aluminium Mylar Foil + Braided Tinned Copper

• Size
• 23 AWG

• Storage Temperature
• -40C to +80C

• Tensile Strength
• Minimum 10N/mm2

• Usage & Applications
• Data centers, outdoor cabling, security and surveillance, factory automation

• Voltage
• Other, 300V

• Weight
• 38 kg/km (approximate)

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Solid

• Dimension (L*W*H)
• 6/12/24/48/96 Foot (ft)

• Features
• cable

• Jacket Color
• Black

• Jacket Material
• Rubber

• Length
• 6 Meter (m)
