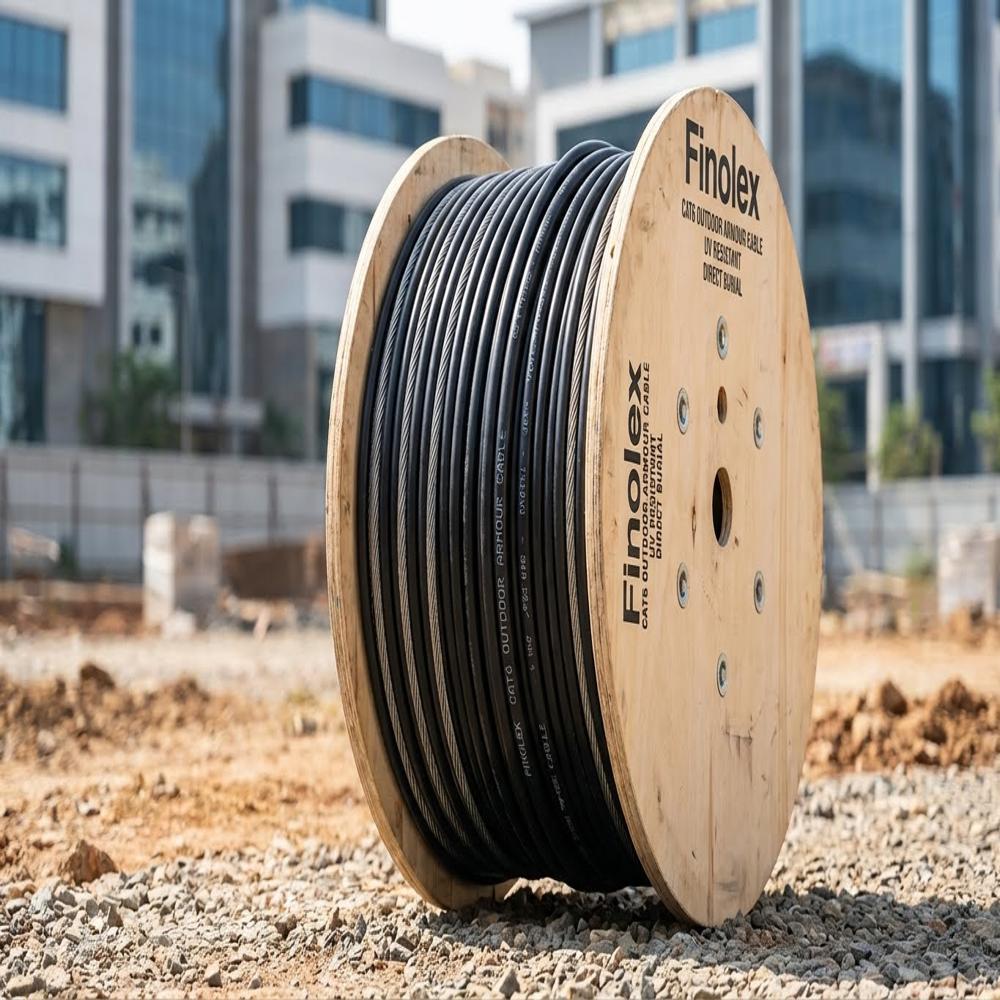

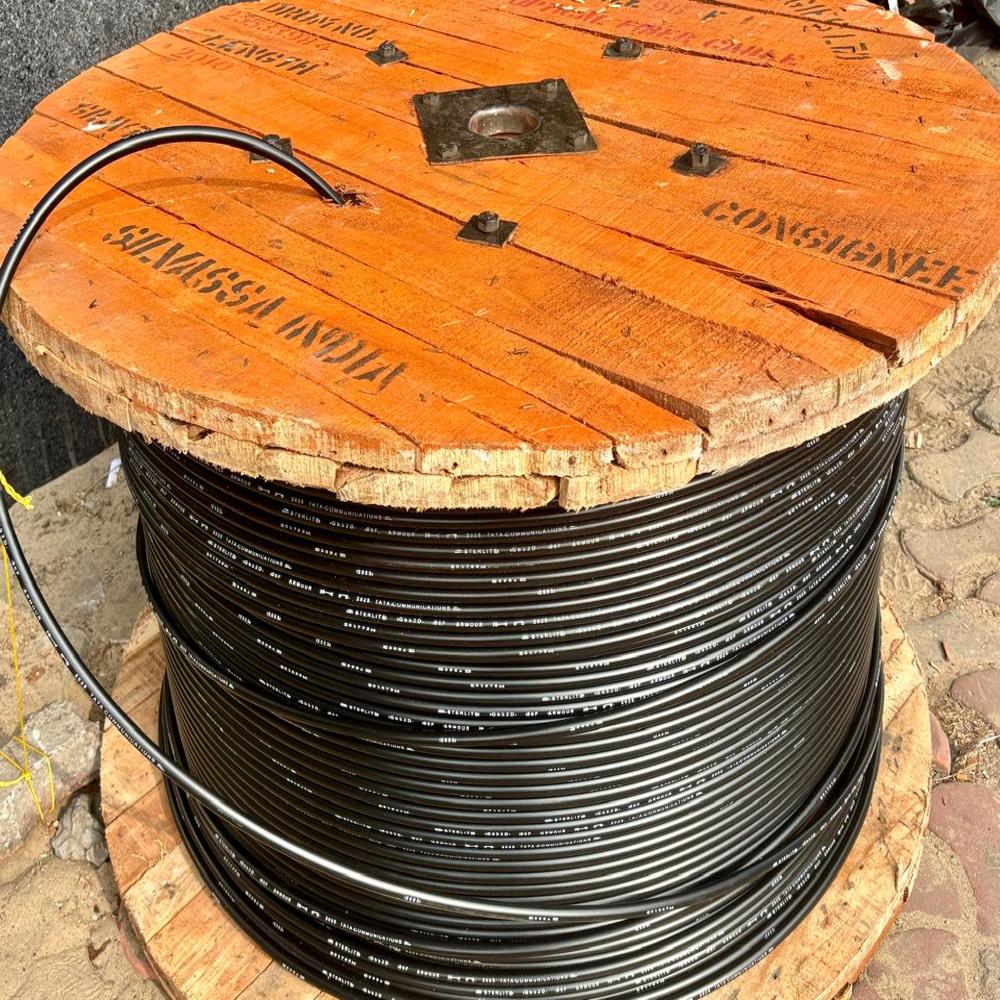

OFC cable Armour / Unaromur

Name: OFC cable Armour / Unaromur
Brand: New Redico
Price: 999.0 INR
Availability: InStock

Price 999.0 INR/ Piece

Get a Price/Quote

MOQ : 6 Pieces

OFC cable Armour / Unaromur Specification

Conductor Type
Solid

Conductor Shape
Round

Features
cable

Length
6 Meter (m)

Conductor Material
Copper

Jacket Material
Rubber

Cable Type
Optical Fiber

Jacket Color
Black

Dimension (L*W*H)
6/12/24/48/96 Foot (ft)

Material
ADSS Cable: Aramind yarns are used as strength members for aerial cables, eliminating the need for metallic armour.

Color
Typically black, with markings indicating manufacturer, year, and fiber count

OFC cable Armour / Unaromur Trade Information

Minimum Order Quantity
6 Pieces

Delivery Time
3 Days

Main Domestic Market
All India

About OFC cable Armour / Unaromur

An Optical Fiber Cable (OFC) is a high-speed networking cable that transmits data as light pulses through thin strands of glass or plastic, rather than using electrical signals over copper. It offers significantly higher bandwidth, faster speeds, and less signal loss over long distances.

Inner Components

Loose Tube Material: Polybutylene Terephthalate (PBT) or similar high-modulus plastic, filled with thixotropic (gel) water-blocking compound.
Central Strength Member: Fiber Reinforced Plastic (FRP) rod or steel wire with polyethylene coating to prevent buckling.
Filling Compound: Thixotropic jelly compound to prevent longitudinal water penetration.
Water Blocking Elements: Water-swellable yarn or tapes applied over the loose tubes.
Armouring & Inner Sheath
- Armouring: Corrugated ECCS (Electrolytic Chrome Coated Steel) Tape or Stainless Steel Alloy 304, typically

  0.125mm thick, for rodent protection and mechanical strength.
- Armour Coating: Copolymer-coated steel to bond with the outer sheath.
- Inner Sheath: High-Density Polyethylene (HDPE) compound, black color, UV stabilized.
Outer Sheath
- Material: HDPE (High-Density Polyethylene) is the standard for long-term weather resistance, typically 1.6mm to 2.0mm thick.
- Optional Sheath: Nylon (Polyamide-12) may be applied over the HDPE sheath for added termite and rodent protection (often used in coastal or high-risk areas).
- Colour: Typically black, with markings indicating manufacturer, year, and fiber count.
- Ripcord: Polyester cords or plastic threads, placed under the sheath for easy stripping.
- Glass Roving Yarn: Impregnated glass roving used for tensile strength and rodent protection.
- Temperature Range: Operation, storage, and installation often within -30C to +70C.
- Tensile Strength: IEC 60794-1-2-E1 standard, often exceeding 1500N-2670N.
- Crush Resistance: IEC 60794-1-2-E3, typically 2000N/10cm or higher.
- Water Penetration: IEC 60794-1-2-F5B, 3-meter sample, 1-meter head of water.Non-metallic/ADSS/Indoor Special Specifications
- ADSS Cable: Aramind yarns are used as strength members for aerial cables, eliminating the need for metallic armour.
- Indoor Cable: LSZH (Low Smoke Zero Halogen) or PVC compounds for the sheath, to meet fire resistance standard
